primer docs

External Toolsets

Concept

Alongside the built-in system toolsets, primer lets you register external toolsets: tool collections that live outside primer and are pulled in over a transport. An external toolset appears in the toolset list next to the built-in ones, and any agent can be bound to it; the agent's effective tool list then includes both the external tools and any other toolsets the agent has.

Today the one external-toolset kind is MCP. The same registration model is what any future external-provider kind would follow: register the source once, and any number of agents can bind to it.

MCP toolsets

MCP (Model Context Protocol) is an open standard for exposing tools to LLMs. An MCP server advertises a list of callable functions; an MCP client (primer, in this case) connects, lists those functions, and forwards agent calls to them.

Primer treats each registered MCP server as a toolset of kind mcp. Once registered, the MCP toolset appears in the toolset list alongside the built-in toolsets, and any agent can be bound to it. This design keeps the integration surface clean: the operator registers an MCP server once, and any number of agents can bind to it. The server does not need to know which agent is calling; primer handles authentication, transport, and the call routing.

Transports

Primer supports two MCP transports.

stdio: primer launches the MCP server as a subprocess and speaks MCP over its standard input and output. The subprocess has a per-dispatch lifetime: it is started (and the MCP init handshake run) at the beginning of each dispatch and closed when that dispatch finishes, rather than kept alive for the provider's lifetime. A single dispatch that issues several tool calls reuses the one subprocess; across dispatches a fresh subprocess is started. This keeps behaviour correct when dispatches land on different workers, at the cost of re-running the handshake per dispatch. Useful for local or containerised MCP servers where you have binary access. The command and its arguments are specified as an argv list; environment variables can be injected as key-value pairs.

HTTP (streamable): primer connects to a remote MCP endpoint over the streamable-HTTP transport. A new HTTP session is opened for each tool call (the MCP SDK has no long-lived equivalent for stateless HTTP MCP). Useful for hosted or remote MCP servers. Supports static headers (for example, an Authorization header) and an optional OAuth 2.1 (PKCE) flow for servers that return a 401 on unauthenticated requests.

flowchart LR
    Agent --> Primer[Primer toolset registry]
    Primer -->|stdio: subprocess| Local[Local MCP server subprocess]
    Primer -->|HTTP streamable| Remote[Remote MCP endpoint]
    Local --> Tools1[Tool calls over stdin/stdout]
    Remote --> Tools2[Tool calls over HTTP]

Stdio command allowlist

In multi-tenant or security-sensitive deployments, an operator can configure an allowed_stdio_commands allowlist on the primer instance. When set, primer refuses to launch any stdio MCP server whose command is not in the allowlist, even if a user creates a Toolset row for it. The allowlist is enforced at dispatch time.

OAuth preflight for HTTP toolsets

When an HTTP MCP toolset has an oauth block configured, primer performs OAuth 2.1 (PKCE) automatically. If a request to the MCP server returns a 401, the adapter raises an auth-required error that surfaces to the caller. Once the OAuth flow is complete (via complete_oauth), the adapter caches the bearer token and includes it on subsequent requests. Passing a principal on list_toolset_tools or call_tool scopes the cached token to a specific end-user identity.

Configuration

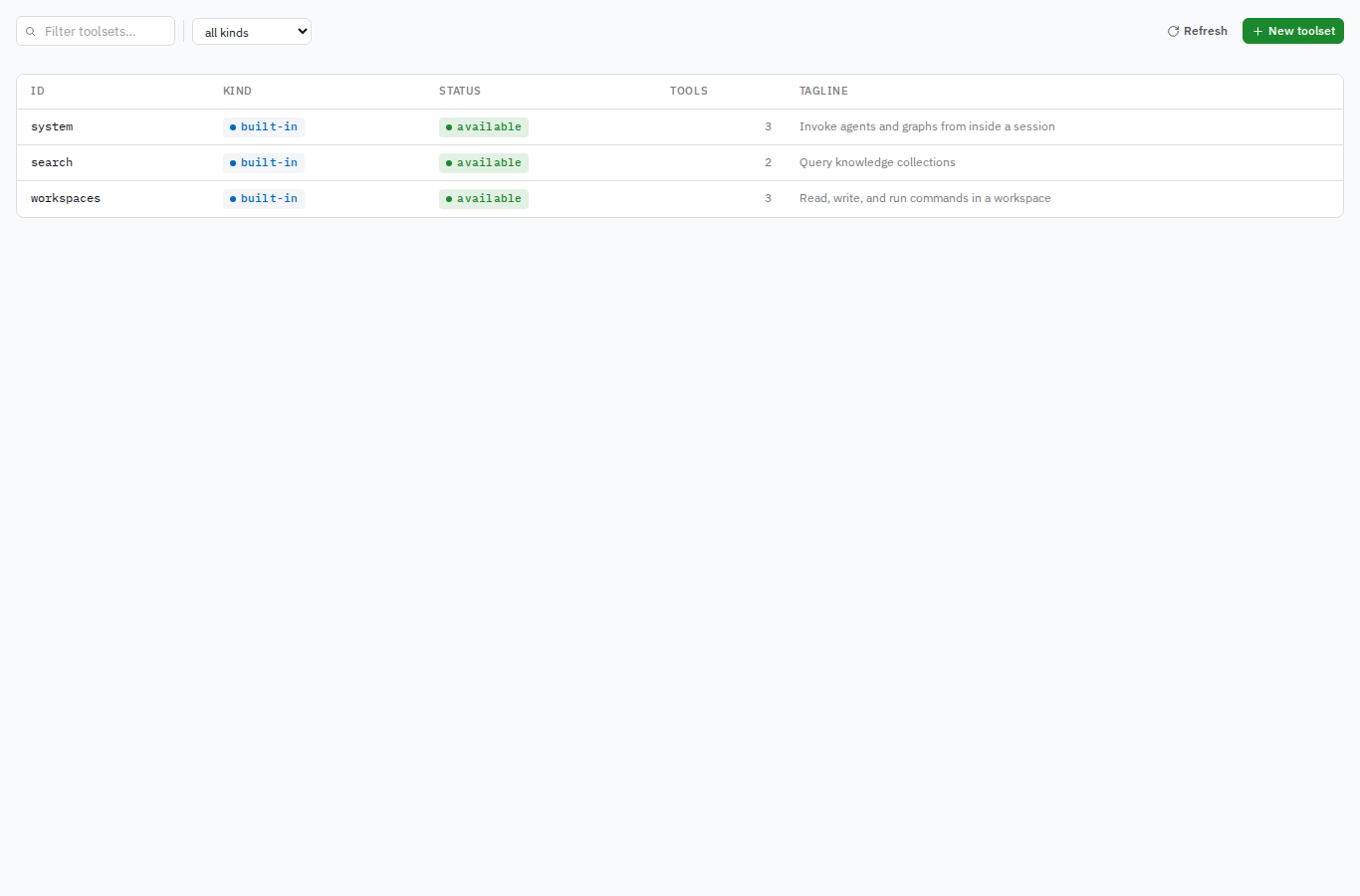

toolsets (live component)
Live component - open it in your console.

To register an MCP toolset:

  1. Open Toolsets in the left nav.

  2. Click New toolset.

  3. Enter a unique id for the toolset (for example, github-mcp). This id is how agents and the console refer to it.

  4. Choose provider = mcp.

  5. Choose a transport:

    Transport When to use
    stdio Local binary or container; you have filesystem access to the server process.
    http Remote or hosted MCP endpoint reachable over HTTP.

  6. Fill in the transport-specific fields:

stdio fields

Field Required Notes
command Yes The full argv list. Example: ["npx", "-y", "@modelcontextprotocol/server-github"]. The first element must be in the allowlist when one is configured.
env No Environment variables injected into the subprocess. Pass API keys here rather than in the command string.

HTTP fields

Field Required Notes
url Yes Base URL of the MCP endpoint. Example: https://mcp.example.com.
headers No Static headers sent on every request. Common use: Authorization: Bearer <token>.
oauth No OAuth 2.1 config block. Set when the server requires OAuth rather than a static token.
  1. Click Save. The toolset is now registered and visible in the toolset list.

Binding the toolset to an agent

After saving the MCP toolset, go to the agent's Tools tab and add it to the toolset list. The agent can then select individual tools from the MCP server or take all of them.

Walkthrough: register a local MCP server

This walkthrough registers the GitHub MCP server as a stdio toolset and binds it to an agent.

  1. Install the MCP server locally if needed: npm install -g @modelcontextprotocol/server-github (or use npx).
  2. In primer, open Toolsets and click New toolset.
  3. Set id to github-mcp and provider to mcp.
  4. Set transport to stdio.
  5. Set command to ["npx", "-y", "@modelcontextprotocol/server-github"].
  6. Set env to {"GITHUB_PERSONAL_ACCESS_TOKEN": "<your-token>"}.
  7. Click Save.
  8. Open an agent, go to the Tools tab, and add github-mcp to its toolset list.
  9. Start a session with that agent and ask: "List the open pull requests in my organisation's main repo."

The agent calls the GitHub MCP server's list_pull_requests tool (or equivalent) through primer and returns the results.

Walkthrough: register a remote HTTP MCP server

  1. Open Toolsets and click New toolset.
  2. Set id to remote-mcp and provider to mcp.
  3. Set transport to http.
  4. Set url to the server's endpoint, for example https://mcp.acme.com/v1.
  5. Optionally add a static Authorization header under headers.
  6. Click Save.
