Semantic Search Providers

Concept

Every knowledge collection stores its document chunks as dense vectors and retrieves them by similarity. A semantic search provider (SSP) is the backend that holds those vectors and answers nearest-neighbour queries. Primer separates the SSP from the collection so you can run several backends simultaneously (a lightweight local store for development and a Postgres-backed store for production) and bind each collection to whichever backend fits its workload.

Three backends ship with Primer:

  • LanceDB (lance): an embedded, file-backed vector store with no external dependency. Primer auto-creates a reserved lance row at first boot so semantic search works without any manual configuration. Use it for development, local demos, or workloads where a flat-file backup (copy the directory) is sufficient.
  • pgvector (pgvector): vectors stored in Postgres tables alongside the rest of your data. A single Postgres instance serves both storage and semantic search; suitable for small to medium collections.
  • pgvectorscale (pgvectorscale): pgvector extended with the StreamingDiskANN index and Statistical Binary Quantization. Choose this backend for very large collections (10 million+ vectors) where HNSW memory cost becomes prohibitive.

Once you register an SSP, you bind a collection to it at create time. That binding is immutable: every embedded chunk for that collection lives in that backend. Deleting an SSP that still has collections bound to it returns 409.

erDiagram
    SemanticSearchProvider ||--o{ Collection : "backs (search_provider_id)"
    SemanticSearchProvider ||--|| VectorStore : "constructs"
    Collection }o--|| EmbeddingProvider : "uses embedder"
    Collection ||--o{ EmbeddingRecord : "indexed chunks"
    VectorStore ||--o{ EmbeddingRecord : "stores + ranks"

The search pipeline works as follows: an agent or the console search modal embeds the query text using the collection's configured embedder, sends the resulting vector to the SSP's vector store, and the store returns the top-k nearest chunks by similarity. That ranked list can be further refined by a cross-encoder reranker or MMR diversification; both are configured on the collection, not the SSP (see ref:embedding/collections-and-documents).

Configuration

LanceDB fields

Field Default Notes
Path required Absolute filesystem path for the LanceDB datasets. Created with mode 0700 on first use. The directory is your backup unit; copy it to snapshot the index.
HNSW M 16 Graph degree. Higher values improve recall and increase index size.
HNSW ef construction 64 Candidate list size during index build. Higher = better recall, slower build.
HNSW ef search 40 Candidate list size during queries. Higher = better recall, slower queries.
Index min rows 1000 Brute-force search is used below this threshold; the ANN index is built lazily once the collection crosses it.

The reserved lance row uses ~/.primer/vector as its path. You can add additional LanceDB SSPs at different paths to partition workloads into separate directories.

pgvector fields

Field Default Notes
DSN required Postgres connection string (e.g. postgresql://user:pass@host/db). The vector extension is installed automatically on first use.
HNSW M 16 See LanceDB above.
HNSW ef construction 64 See LanceDB above.
HNSW ef search 40 See LanceDB above.
Reindex cron none Crontab expression for periodic HNSW maintenance. Leave blank to disable.
Use halfvec off Store vectors as pgvector halfvec (half-precision, up to 4000 dimensions) instead of the standard vector type (up to 2000 dimensions). Enable for embedding models above 2000 dimensions; for example text-embedding-3-large outputs 3072-dimensional vectors. Only affects collections created while this flag is on; existing collections keep their original type.

pgvectorscale fields

pgvectorscale shares all pgvector fields and adds the following DiskANN controls (active only when Enable DiskANN is on):

Field Default Notes
Enable DiskANN off When on, collections get a StreamingDiskANN index instead of HNSW. Recommended for 10 million+ vectors.
Storage layout memory_optimized memory_optimized enables Statistical Binary Quantization (SBQ) to reduce memory; plain keeps full-precision vectors in the index.
Num neighbors 50 DiskANN graph degree. Higher = better recall, larger index.
Search list size 100 Build and query-time candidate list. Higher = better recall, slower build and queries.
Max alpha 1.2 Graph density. Values up to ~1.4 increase recall at the cost of build time.
Num bits per dimension auto Bits per dimension used by SBQ. Leave blank to use the pgvectorscale default. Ignored when storage layout is plain.

Walkthrough

Add a pgvector SSP

  1. In the console, open Providers in the left navigation and click the Semantic Search tab.
  2. Click Add provider.
  3. Choose pgvector from the provider type dropdown.
  4. Enter an ID (e.g. pgvector-prod). IDs are immutable after creation.
  5. Enter the Postgres DSN for your database.
  6. Adjust HNSW tuning if needed; defaults work for most workloads.
  7. Enable Use halfvec if you plan to use embedding models with more than 2000 dimensions.
  8. Click Save.

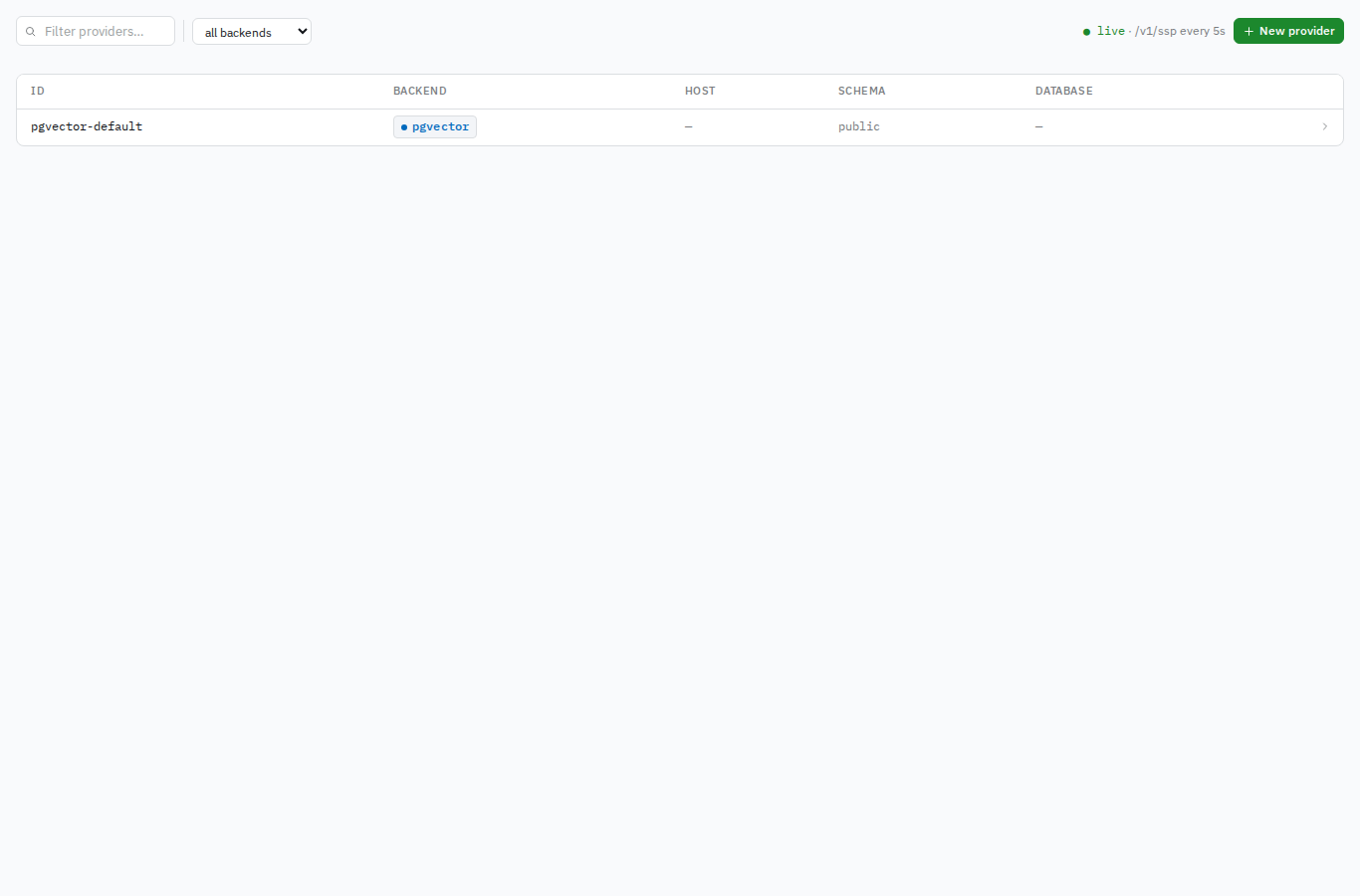

ssp (live component)
Live component - open it in your console.

The provider row is saved and the backend runs CREATE EXTENSION IF NOT EXISTS vector on first use. The SSP appears in the provider list and is immediately selectable when creating a collection.

Add a LanceDB SSP

Follow the same steps, choose lance as the provider type, and supply an absolute path on a filesystem where Primer has write access. The directory is created on first use.

Edit or invalidate a provider

The connection fields (hostname, port, database, username, password) are mutable. To repoint a provider or update rotated credentials, click Edit on the provider row, change the fields, and save: the cached adapter is rebuilt with the new settings on the next request, so the change takes effect without a restart.

Invalidate is a separate action that forces a fresh connection without a config change. Click Invalidate next to the provider row (or send POST /v1/ssp/{id}/invalidate) when the existing connection has gone stale (for example, the database was restarted or a pooled connection dropped) but the stored settings are still correct. The cached adapter is closed and rebuilt on the next request. Either way, no vector data is lost.
